Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine

Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine
Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine
Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine

Large Image :  Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV4-120S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 sets/month
Contact Now

Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine

Description
Product Name: Terminal Parts Making By 160Ton Vertical Single Slide Injection Molding Machine Usage: Terminal Parts
Key Selling Points: High Precision Applicable Industries: Manufacturing Plant
After-sales Service Provided: After-sales Service Provided Motor: Servo Energy Saving
Warranty: 12 Months Style: New
Highlight:

Terminal Parts Single Slide Injection Molding Machine

,

Single Slide Injection Molding Machine Vertical

Terminal Parts Making By 160Ton Vertical Single Slide Injection Molding Machine



The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams. Vertical mold clamping, vertical injection, single sliding mold structure. After the injection molding is completed, the product slides out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:

　 UNIT TFV4-120S TFV4-160S TFV4-200S
　 INJECTION UNIT
Screw stroke mm 160 200 200
Screw Diameter mm 36 40 45 45 50 55 55 60 65
Theoretical Injection Volume cm3 163 201 254 318 393 475 475 565 664
Injection Weight(PS) g 151 187 237 296 365 442 442 526 617
oz 5.34 6.60 8.35 10.43 12.88 15.59 15.59 18.55 21.77
Max.Injection Pressure Mpa 222 180 142 218 177 146 170 143 122
kgf/cm2 2269 1838 1452 2226 1803 1490 1738 1460 1244
Injection Rate cm3/s 128 158 200 167 206 249 314 373 438
Max Injection Speed mm/s 126 105 132
Screw Speed Rotation r.p.m 10~280 10~280 10~240
Positioning ring diameter mm 120 120 150
Nozzle Out From Platens mm ≥45 ≥45 ≥45
　 　 CLAMPING UNIT
Clamping Force KN(ton) 1176(120) 1568(160) 1960(200)
Clamping Stroke mm 280 300 350
Min.Mold Thickness mm 280(380) 300(400) 350(450)
Max.Opening mm 560(660) 600(700) 700(800)
(L*W)Distance Between Tie Bars mm 610*380 690*410 900*450
(L*W)Max.Mould Size mm 580*540 710*630 760*630
(L*W)Skate size mm 600*560 730*650 780*650
QTY of Ejector pcs 3 5 5
Top bar spacing mm 80 100 125
Ejector Distance mm 100 110 150
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
　 　 OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 340 450 540
Electric Power KW 18.7 22 31
Heater Power KW 10.7 13.7 13.7
Machine Dimensions L*W m 2.4*1.8 2.8*1.8 3.3*2.1
H(Excluding shock-absorbing feet) m Min:3.3(Max:4.1) Min:3.4(Max:4.2) Min:4.35(Max:5.35)
Cooling water capacity L/min 50 50 60
Height of Workbench+(Excluding shock-absorbing feet) mm 1340+(70) 1480+(80) 1630+(80)
Machine Weight ton 6.0 8.5 11.5





2. Features:



  • After the mold is opened, the lower mold automatically moves in front of the operator, making it easier to operate and safer.
  • Multi-stage temperature control, multi-stage injection pressure and injection speed, and stepless adjustment of injection back pressure are more suitable for the molding of various precision plastic parts.
  • Easier to embed automation equipment to achieve fully automated production lines.

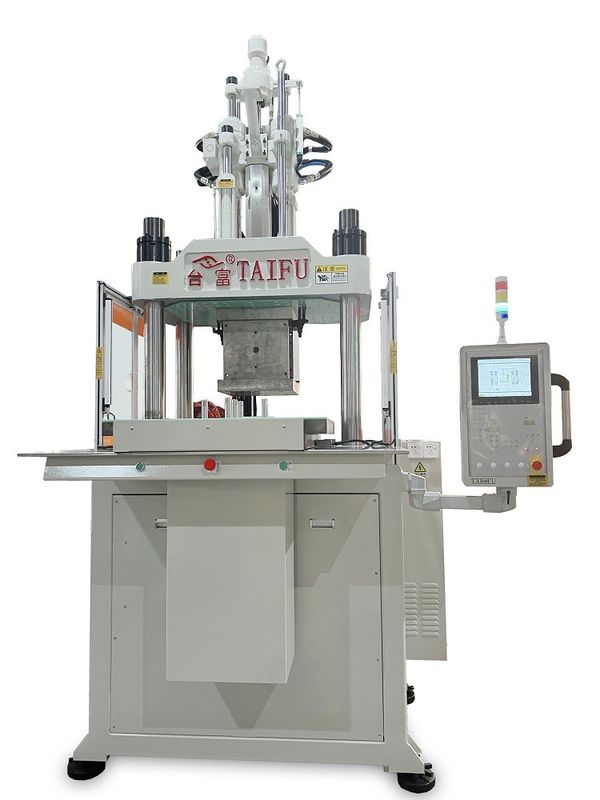

3. Machine Pictures:

Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine 0

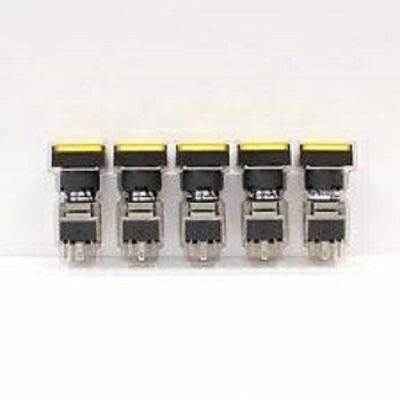

4. Applications:

Terminal Parts Making By 160 Ton Vertical Single Slide Injection Molding Machine 1





5. FAQ:



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
