55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine
55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine
55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

Large Image :  55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV3-55R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 220 set per month
Contact Now

55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

Description
Product Name: 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine Model: TFV3-55R2
Function: SIM Card Tray Holder Slot Key Selling Points: High Effiency
Warranty: 1 Year Application: Motor Rotor
Clamping Force: 55 Ton Injiection Rate: 44cm³/s-105cm³/s
Highlight:

55 Ton Vertical Molding Machine

,

Vertical Molding Machine

55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine



TAIFU vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.

Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.

There are various machine models we have VR-35/55/85/120/160/200/250/300



1.Specification:


Items Unit TFV3-35R2 TFV3-55R2 TFV3-85R2
Injection Unit
Screw Diameter mm 22 26 28 28 32 36 32 36 40
Theoretical Injection Volume cm³ 53 74 86 86 113 143 113 143 176
Injection Weight g 49 69 80 80 105 133 105 133 164
Max. Injection Pressure Mpa 248 178 153 213 163 129 228 180 146
Injection Rate cm³/s 44 62 72 63 84 107 100 126 156
Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Clamping Unit
Clamping Force KN 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Ejector Force KN 26.5(2.7) 26.5(2.7) 45(4.6)
Others
System Pressure Mpa 13.7(140)/17.2(175) 13.7(140) 13.7(140)/17.2(175)
Oil Tank Capacity L 200 230 300
Motor Power KW 7.5/11 11 15+2.2/18+2.2
Heater Power KW 3.6 5.5 7.0



2. Features:



  • Use KEBA controller
  • Easy and user-friendly operation interface.
  • Use mechanical direct-locking structure, longer mold service life and lower energy consumption
  • High positioning accuracy
  • Automation devices such as automatic insertion and removal can be installed toachieve automatic operation of the whole machine.

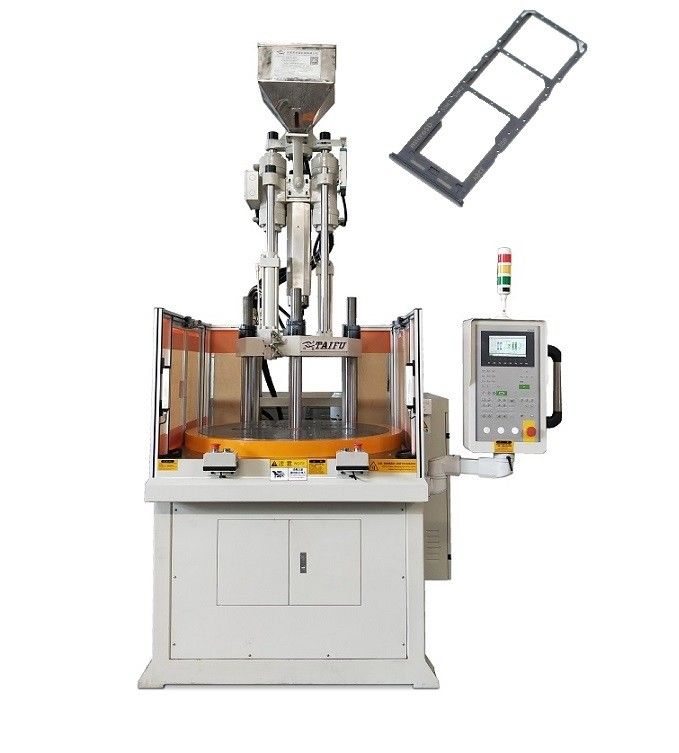

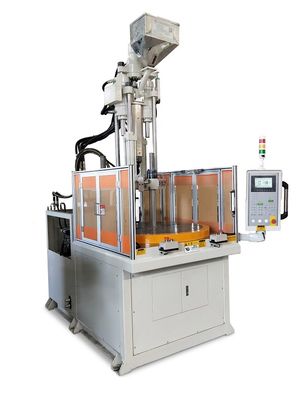

3. Machine Pictures:



55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 0

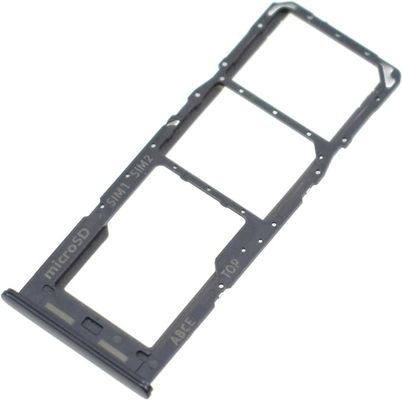

4. Applications:


55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 1


5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


6. FAQ:



Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.


Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



Q: What are your payment terms?
T/T 30% deposite,70%before departure.



Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



If you are interested in our machines, please do not hesitate to CONTACT US!
