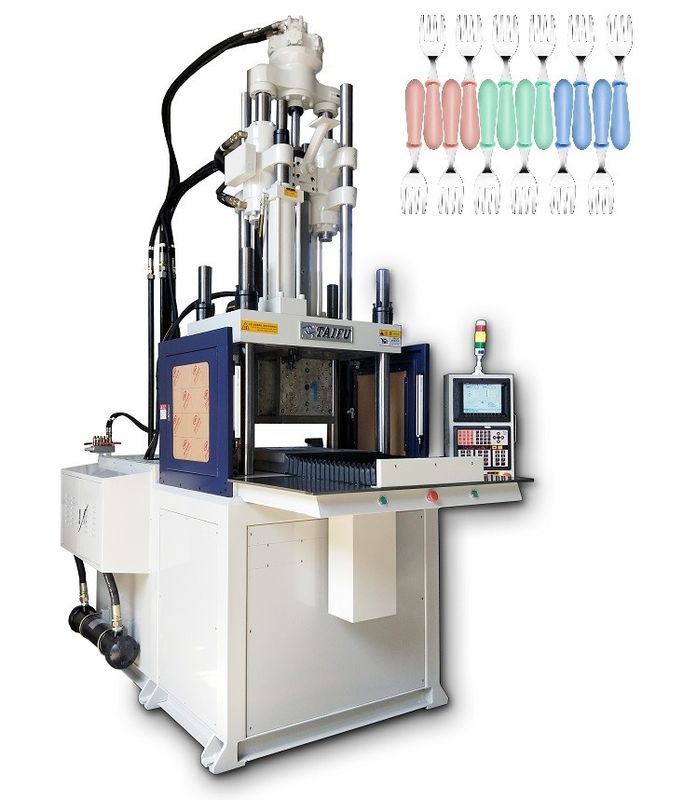

120 Ton Single Slide Vertical Spoon Injection Molding Machine

120 Ton Single Slide Vertical Spoon Injection Molding Machine
120 Ton Single Slide Vertical Spoon Injection Molding Machine
120 Ton Single Slide Vertical Spoon Injection Molding Machine 120 Ton Single Slide Vertical Spoon Injection Molding Machine 120 Ton Single Slide Vertical Spoon Injection Molding Machine 120 Ton Single Slide Vertical Spoon Injection Molding Machine

Large Image :  120 Ton Single Slide Vertical Spoon Injection Molding Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: TAIFU
Certification: CE、ISO9001
Model Number: TFV4-120S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 220 sets/month
Contact Now

120 Ton Single Slide Vertical Spoon Injection Molding Machine

Description
Product Name: 120 Ton Single Slide Vertical Spoon Injection Molding Machine Key Selling Points: High Efficiency
Usage: Spoon Applicable Industries: Manufacturing Plant
Motor: Servo Energy Saving Warranty: 1 Year
Style: New After-sales Service Provided: After-sales Service Provided
Highlight:

120 Ton Spoon Injection Molding Machine

,

120 Ton Vertical Injection Molding Machine

,

Spoon Injection Molding Machine

120 Ton Single Slide Vertical Spoon Injection Molding Machine



It is available to customize machines to meet your...



Taifu vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.

Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.

There are various machine models we have V-35S/55S/85S/120S/160S/200S/250S/300S



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



UNIT TFV4-120S TFV4-160S TFV4-200S
　 INJECTION UNIT
Screw stroke mm 160 200 200
Screw Diameter mm 36 40 45 45 50 55 55 60 65
Theoretical Injection Volume cm3 163 201 254 318 393 475 475 565 664
Injection Weight(PS) g 151 187 237 296 365 442 442 526 617
oz 5.34 6.60 8.35 10.43 12.88 15.59 15.59 18.55 21.77
Max.Injection Pressure Mpa 222 180 142 218 177 146 170 143 122
kgf/cm2 2269 1838 1452 2226 1803 1490 1738 1460 1244
Injection Rate cm3/s 128 158 200 167 206 249 314 373 438
Max Injection Speed mm/s 126 105 132
Screw Speed Rotation r.p.m 10~280 10~280 10~240
Positioning ring diameter mm 120 120 150
Nozzle Out From Platens mm ≥45 ≥45 ≥45
　 　 CLAMPING UNIT
Clamping Force KN(ton) 1176(120) 1568(160) 1960(200)
Clamping Stroke mm 280 300 350
Min.Mold Thickness mm 280(380) 300(400) 350(450)
Max.Opening mm 560(660) 600(700) 700(800)
(L*W)Distance Between Tie Bars mm 610*380 690*410 900*450
(L*W)Max.Mould Size mm 580*540 710*630 760*630
(L*W)Skate size mm 600*560 730*650 780*650
QTY of Ejector pcs 3 5 5
Top bar spacing mm 80 100 125
Ejector Distance mm 100 110 150
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
　 　 OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 340 450 540
Electric Power KW 18.7 22 31
Heater Power KW 10.7 13.7 13.7
Machine Dimensions L*W m 2.4*1.8 2.8*1.8 3.3*2.1
H(Excluding shock-absorbing feet) m Min:3.3(Max:4.1) Min:3.4(Max:4.2) Min:4.35(Max:5.35)
Cooling water capacity L/min 50 50 60
Height of Workbench+(Excluding shock-absorbing feet) mm 1340+(70) 1480+(80) 1630+(80)
Machine Weight ton 6.0 8.5 11.5



2. Features:



  • After the mold is opened, the lower mold automatically moves in front of the operator, making it easier to operate and safer.
  • Multi-stage temperature control, multi-stage injection pressure and injection speed, and stepless adjustment of injection back pressure are more suitable for the molding of various precision plastic parts.
  • Easier to embed automation equipment to achieve fully automated production lines.

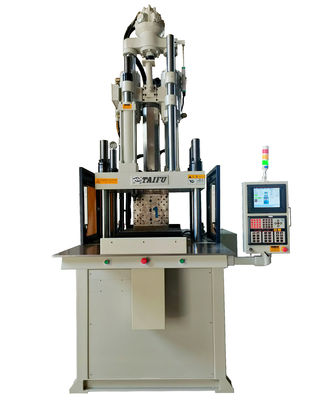

3. Machine Pictures:



120 Ton Single Slide Vertical Spoon Injection Molding Machine 0



4. Applications:



 120 Ton Single Slide Vertical Spoon Injection Molding Machine 1



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
