High Precision Auto Accessories Making Machine Vertical Injection Molding Machine

High Precision Auto Accessories Making Machine Vertical Injection Molding Machine
High Precision Auto Accessories Making Machine Vertical Injection Molding Machine
High Precision Auto Accessories Making Machine Vertical Injection Molding Machine High Precision Auto Accessories Making Machine Vertical Injection Molding Machine High Precision Auto Accessories Making Machine Vertical Injection Molding Machine

Large Image :  High Precision Auto Accessories Making Machine Vertical Injection Molding Machine

Product Details:
Place of Origin: Dongguan,China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV3-120R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union, D/P, D/A
Supply Ability: 220 set per month
Contact Now

High Precision Auto Accessories Making Machine Vertical Injection Molding Machine

Description
Product Name: High Precision Auto Accessories Making Machine Vertical Injection Molding Machine Model: TFV3-120R2
Application: Auto Accessories Function: Making Plastic Product
Key Selling Points: High Effiency Clamping Force: 120 Ton
Warranty: 1 Year Color: White & Blue
Highlight:

precision vertical injection molding

,

accessories vertical injection molding

,

precision vertical plastic injection molding machine

High Precision Auto Accessories Making Machine Vertical Injection Molding Machine



The vertical rotary injection molding machine, due to its unique rotary table design, can be used in conjunction with extended automation equipment to achieve high-quality and efficient automated production for products with complex shapes and special processes. It has been widely used in the automotive parts and new energy industries.


This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts.



1.Specification:


  UNIT TFV3-85R2 TFV3-120R2 TFV3-160R2
Injection Unit Shooter configuration code name Z8 Z12 Z16
Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Claping Unit Clamping Force KN(ton) 833(85)/980(100) 1176(120) 1568(160)
Clamping Stroke mm 250 280 300
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 480(560) 560(660) 600(700)
(L*W)Max.Mould Size mm 360*360/450*320 420*420/560*360 520*520/700*450
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1010 φ1200 φ1400
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)
Oil Tank Capacity L 300 380 480
Electric Power KW 15+2.2/18+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W*H m 2.3*1.8*2.7 2.5*2.0*3.3 2.8*2.2*3.7
Work Table Height mm 1150+(70) 1310+(70) 1495+(80)
Machine Weight ton 4.6 7.0 10.0



2. Features:



  • Three-column two-station turntable machines and traditional table tops over 85 tons need to be equipped with a platform
  • The turntable is driven by a servo motor and has a positioning accuracy of 0.02-0.03mm
  • Automatic devices such as automatic insertion and removal can be installed to achieve fully automated operation of the entire machine.

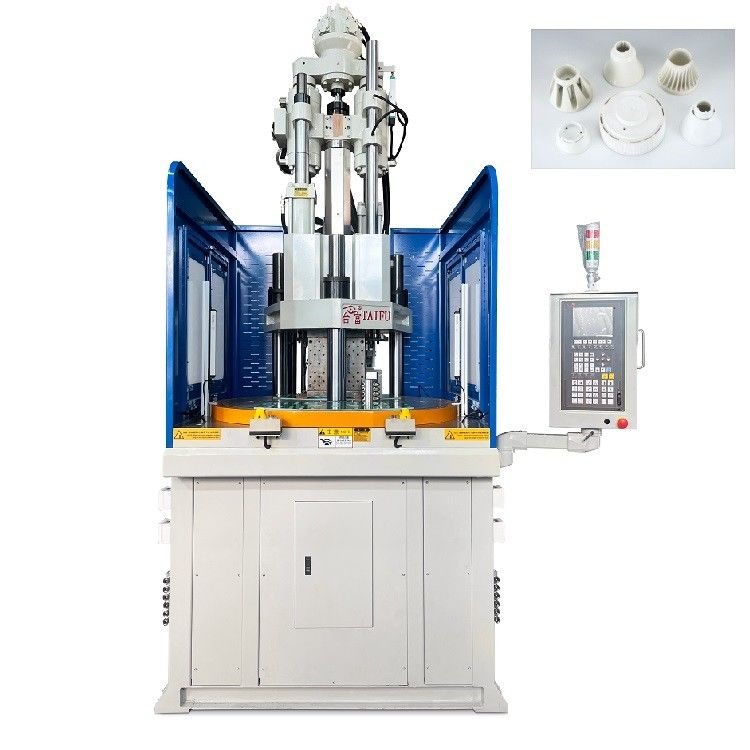

3. Machine Pictures:



High Precision Auto Accessories Making Machine Vertical Injection Molding Machine 0

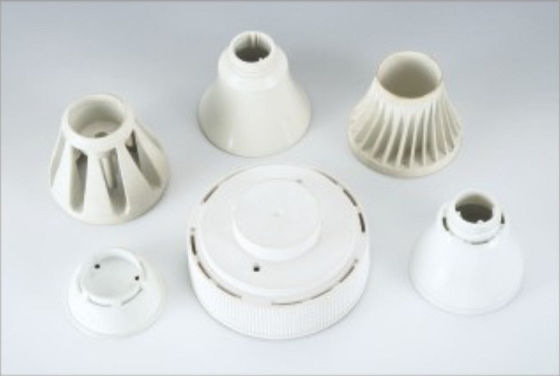

4. Applications:


High Precision Auto Accessories Making Machine Vertical Injection Molding Machine 1


5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


6. FAQ:


Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.


Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q: What are your payment terms?
T/T 30% deposite,70%before departure.



Q: How do you calculate tonnage for injection molding?

A: Tonnage = Volume * Maximum Safety Pressure



If you are interested in our machines, please contact us without hesitation!
