Pet toys Vertical Rotary Table Injection Molding Machine160 Ton
The vertical rotary injection molding machine, due to its unique rotary table design, can be used in conjunction with extended automation equipment to achieve high-quality and efficient automated production for products with complex shapes and special processes. It has been widely used in the automotive parts and new energy industries.
This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts. The 120 ton capacity refers to the clamping force exerted by the machine to hold the mold together during the injection process. This clamping force ensures that the mold remains closed and properly sealed while the molten material is injected.
The disc has 2 stations. If there are special needs, you can choose 3 stations or 4 stations to achieve more convenient operation. It can be injection molded: glasses accessories, home appliance accessories, bag wheel rubber accessories, mobile phone accessories and other secondary molding products.
1.Specification:
| |
UNIT |
TFV3-160R2 |
TFV3-200R2 |
TFV3-250R2 |
| INJECTION UNIT |
Shooter configuration code |
name |
Z16 |
Z16 |
Z20 |
| Screw stroke |
mm |
200 |
200 |
250 |
| Screw Diameter |
mm |
45 |
50 |
55 |
55 |
60 |
65 |
60 |
65 |
70 |
| Theoretical Injection Volume |
cm3 |
318 |
393 |
475 |
475 |
565 |
664 |
707 |
830 |
962 |
| Injection Weight(PS) |
g |
296 |
365 |
442 |
442 |
526 |
617 |
657 |
772 |
895 |
| oz |
10.43 |
12.88 |
15.59 |
15.59 |
18.55 |
21.77 |
23.19 |
27.21 |
31.56 |
| Max.Injection Pressure |
Mpa |
218 |
177 |
146 |
170 |
143 |
122 |
198 |
169 |
146 |
| kgf/cm2 |
2226 |
1803 |
1490 |
1738 |
1460 |
1244 |
2022 |
1723 |
1486 |
| Injection Rate |
cm3/s |
167 |
206 |
249 |
314 |
373 |
438 |
288 |
338 |
393 |
| Max Injection Speed |
mm/s |
105 |
132 |
102 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~240 |
10~240 |
| Positioning ring diameter |
mm |
120 |
150 |
150 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
1568(160) |
1960(200) |
2450(250) |
| Clamping Stroke |
mm |
300 |
350 |
350 |
| Min.Mold Thickness |
mm |
300(400) |
350(450) |
350(450) |
| Max.Opening |
mm |
600(700) |
700(800) |
700(800) |
| (L*W)Max.Mould Size |
mm |
520*520/700*450 |
570*570/800*470 |
670*670/860*570 |
| Number of turntable stations |
mm |
2 |
2 |
2 |
| (D) Rotary Table Size |
mm |
φ1400 |
φ1630 |
φ1800 |
| QTY of Ejector |
pcs |
5 |
5 |
5 |
| Top bar spacing |
mm |
100 |
125 |
125 |
| Ejector Distance |
mm |
110 |
150 |
150 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
480 |
600 |
750 |
| Electric Power |
KW |
22+2.2 |
31+2.2 |
37+2.2 |
| Heater Power |
KW |
13.7 |
13.7 |
24.3 |
| Machine Dimensions |
L*W |
m |
2.8*2.2 |
3.5*2.2 |
3.6*2.3 |
| H(不含避震脚) |
m |
Min:3.7(Max:4.5) |
Min:4.2(Max:5.2) |
Min:4.2(Max:5.2) |
| Cooling water capacity |
L/min |
50 |
60 |
60 |
| Work table height |
mm |
1495+(80) |
1600+(80) |
1600+(80) |
| Machine Weight |
ton |
10.0 |
15.2 |
17.5 |
2. Features:
- Three-column two-station turntable machines and traditional table tops over 85 tons need to be equipped with a platform
- High-precision positioning enables more accurate mold closing of the upper and lower molds
- Automatic devices such as automatic insertion and removal can be installed to achieve fully automated operation of the entire machine.

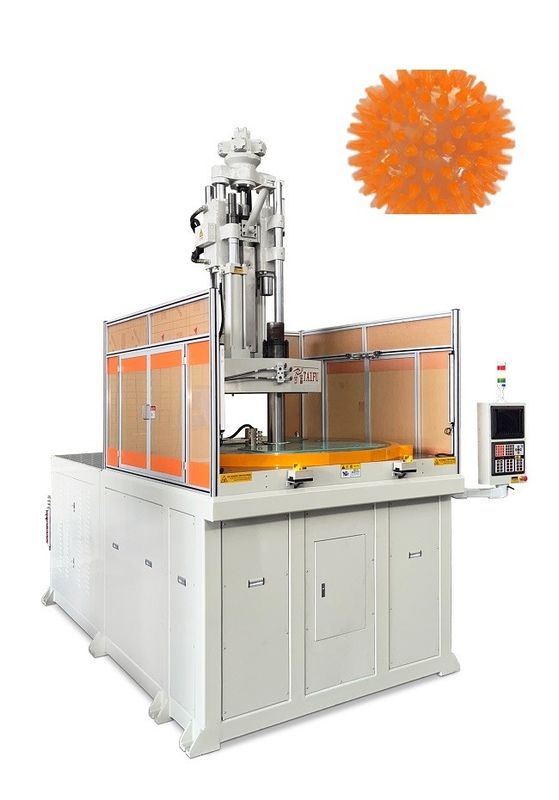

3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: How do you calculate tonnage for injection molding?
A: Tonnage = Volume * Maximum Safety Pressure
Therefore, it is always best to consult with an experienced injection molders to determine the exact tonnage in injection required for a specific application. Normally, 5 tons per square inch is used for calculating the clamping tonnage for any given mould.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
If you are interested in our machines, please contact me without hesitation!
