35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine

35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine
35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine
35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine 35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine 35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine

Large Image :  35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV4-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, D/A, D/P, L/C, Western Union
Supply Ability: 220 set/month
Contact Now

35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine

Description
Name: 35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine Model: TFV4-35
Application: Latch Cord Function: Making Plastic Product
Key Selling Points: Cheap Price Advantage: Easy To Operate
Warranty: 12 Months Color: White
Highlight:

35 Ton Injection Moulding Machine

,

Injection Molding Machines Manufacturer

,

plastic vertical rubber injection molding machine



35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine



It is available to customize machines to meet your



TAIFU 35 Ton Vertical Injection Molding Machine is a specialized machine used for manufacturing Latch Cord. It is designed to provide accurate and safe operation, making it suitable for insert molding. The machine features a vertical direct hydraulic clamping system, which ensures precise molding and reduces production costs.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



ITEMS UNIT TFV4-35(45) TFV4-55 TFV4-85
INJECTION UNIT
Screw stroke mm 140 140 140
Screw Diameter mm 22 28 32 26 30 36 32 36 40
Theoretical Injection Volume cm3 53 86 113 74 99 143 113 143 176
Injection Weight(PS) g 49 80 105 69 92 133 105 133 164
oz 1.75 2.83 3.69 2.44 3.25 4.67 3.69 4.67 5.77
Max.Injection Pressure Mpa 248 153 117 247 185 129 228 180 146
kgf/cm2 2531 1563 1196 2516 1890 1313 2331 1842 1492
Injection Rate cm3/s 44 72 94 56 74 107 100 126 156
Max Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Positioning ring diameter mm 100 110 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT
Clamping Force KN(ton) 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Min.Mold Thickness mm 150(210) 180(240) 230(310)
Max.Opening mm 350(410) 380(440) 480(560)
(L*W)Distance Between Tie Bars mm 410*220 445*255 520*350
(L*W)Max.Mould Size mm 400*350 425*380 500*500
(L*W)尺寸Platen Size mm 560*370 580*400 710*540
QTY of Ejector pcs 1 1 1
Ejector Distance mm 40 40 50
Ejector Force KN(ton) 17.2(1.75) 17.2(1.75) 26.5(2.7)
Other
System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)/17.2(175)
Oil Tank Capacity L 130 140 280
Electric Power KW 5.5/7.5 7.5 15/18.7
Heater Power KW 3.6 5.5 7.0
Machine Dimensions L*W m 1.6*1.2 1.9*1.3 2.0*1.5
H(Excluding shock-absorbing feet) m Min:2.15(Max:2.7) Min:2.25(Max:2.8) Min:2.6(Max:3.3)
Cooling water capacity L/min 25 35 40
Height of Workbench+(Excluding shock-absorbing feet) mm 940+(60) 1020+(60) 1040+(70)
Machine Weight ton 1.3 1.6 3.5



2. Features:



  • Vertical mold-locking, vertical injection
  • Occupy less space.
  • Clamping is designed with a direct-pressing sub-mother type locking cylinder, which can quickly clamping and slow low-pressure clamping, and improve the service life of the mold.
  • With high performance, high response and high precision multi-function industrial control computer, forming is more convenient.

3. Machine Pictures:

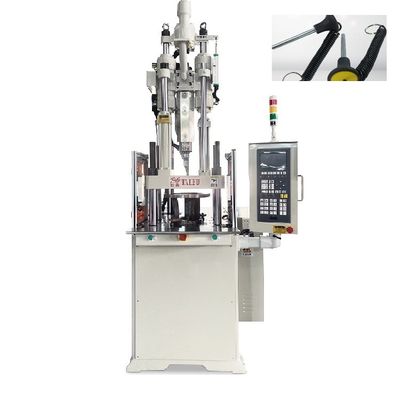

35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine 0



4. Applications:

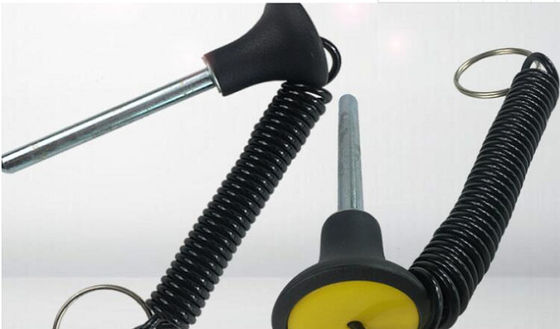

35 Ton Vertical Plastic Injection Molding Machine Latch Cord Making Machine 1





5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
