Product Details:
|
| Product Name: | Vertical Rotary Table Auto Parts Injection Molding Machine 200 Ton | Model: | TFV3-200R2 |
|---|---|---|---|
| Application: | Auto Parts | Function: | Making Plastic Product |
| Key Selling Points: | High Effiency | Warranty: | 12 Months |
| Color: | White | Motor Power: | 33.2 KW |
| High Light: | 200 ton injection moulding machine,auto parts rotary vertical injection moulding machine,rotary table injection molding machine |
||
Vertical Rotary Table Auto Parts Injection Molding Machine 200 Ton
The clamping force specifications of Taifu vertical turntable injection molding machines range from 35 tons to 350 tons. The minimum diameter of the turntable is 810mm and the maximum is 2300mm.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in auto parts and new energy industry.
1.Specification:
| ITEMS | UNIT | TFV3-200R2 | |||
| INJECTION UNIT | |||||
| Screw stroke | mm | 200 | |||
| Screw Diameter | mm | 55 | 60 | 65 | |
| Theoretical Injection Volume | cm3 | 475 | 565 | 664 | |
| Injection Weight(PS) | g | 442 | 526 | 617 | |
| oz | 15.59 | 18.55 | 21.77 | ||
| Max.Injection Pressure | Mpa | 170 | 143 | 122 | |
| kgf/cm2 | 1738 | 1460 | 1244 | ||
| Injection Rate | cm3/s | 314 | 373 | 438 | |
| Max Injection Speed | mm/s | 132 | |||
| Screw Speed Rotation | r.p.m | 10~240 | |||
| Positioning ring diameter | mm | 150 | |||
| Nozzle Out From Platens | mm | ≥45 | |||
| CLAMPING UNIT | |||||
| Clamping Force | KN(ton) | 1960(200) | |||
| Clamping Stroke | mm | 350 | |||
| Min.Mold Thickness | mm | 350(450) | |||
| Max.Opening | mm | 700(800) | |||
| (L*W)Max.Mould Size | mm | 570*570/800*470 | |||
| Number of turntable stations | mm | 2 | |||
| (D) Rotary Table Size | mm | φ1630 | |||
| QTY of Ejector | pcs | 5 | |||
| Top bar spacing | mm | 125 | |||
| Ejector Distance | mm | 150 | |||
| Ejector Force | KN(ton) | 45(4.6) | |||
| OTHERS | |||||
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 600 | |||
| Electric Power | KW | 31+2.2 | |||
| Heater Power | KW | 13.7 | |||
| Machine Dimensions | L*W | m | 3.5*2.2 | ||
| H(Excluding shock-absorbing feet) | m | Min:4.2(Max:5.2) | |||
| Cooling water capacity | L/min | 60 | |||
| Height of Workbench+(Excluding shock-absorbing feet) | mm | 1600+(80) | |||
| Machine Weight | ton | 15.2 | |||
2. Features:

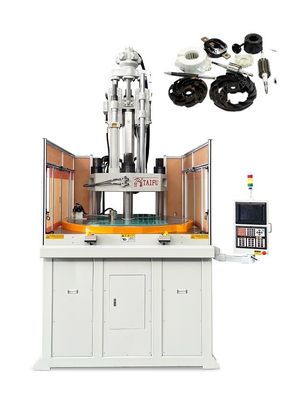

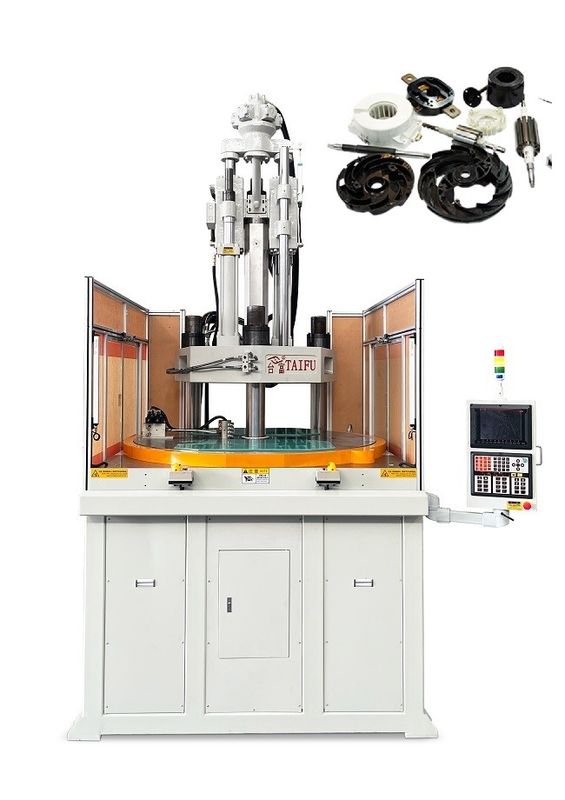

3. Machine Pictures:

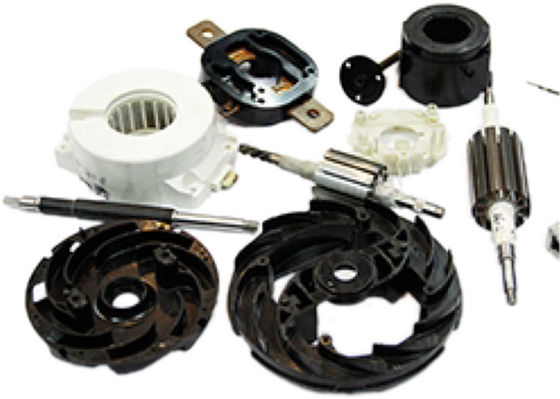

4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
