Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders

Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders
Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders
Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders

Large Image :  Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders

Product Details:
Place of Origin: Dongguan,China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV3-200R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 set per month
Contact Now

Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders

Description
Product Name: Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders Model: TFV3-200R2
Clamping Force: 200 Ton Application: Car Headlight Bulb Holders
Function: Making Plastic Product Key Selling Points: High Effiency
Warranty: 12 Months After-sales Services: Provided
Highlight:

vertical injection unit

,

car rotary table injection molding machine

,

High-speed rotary table vertical injectionn molding machine

Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders



The vertical rotary injection molding machine, due to its unique rotary table design, can be used in conjunction with extended automation equipment to achieve high-quality and efficient automated production for products with complex shapes and special processes. It has been widely used in the automotive parts and new energy industries.

This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts.



1.Specification:


ITEMS UNIT TFV3-200R2
  INJECTION UNIT
Screw stroke mm 200
Screw Diameter mm 55 60 65
Theoretical Injection Volume cm3 475 565 664
Injection Weight(PS) g 442 526 617
oz 15.59 18.55 21.77
Max.Injection Pressure Mpa 170 143 122
kgf/cm2 1738 1460 1244
Injection Rate cm3/s 314 373 438
Max Injection Speed mm/s 132
Screw Speed Rotation r.p.m 10~240
Positioning ring diameter mm 150
Nozzle Out From Platens mm ≥45
　 CLAMPING UNIT
Clamping Force KN(ton) 1960(200)
Clamping Stroke mm 350
Min.Mold Thickness mm 350(450)
Max.Opening mm 700(800)
(L*W)Max.Mould Size mm 570*570/800*470
Number of turntable stations mm 2
(D) Rotary Table Size mm φ1630
QTY of Ejector pcs 5
Top bar spacing mm 125
Ejector Distance mm 150
Ejector Force KN(ton) 45(4.6)
　 OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 600
Electric Power KW 31+2.2
Heater Power KW 13.7
Machine Dimensions L*W m 3.5*2.2
H(Excluding shock-absorbing feet) m Min:4.2(Max:5.2)
Cooling water capacity L/min 60
Height of Workbench+(Excluding shock-absorbing feet) mm 1600+(80)
Machine Weight ton 15.2

2. Features:



  • Three-column two-station turntable machines and traditional table tops over 85 tons need to be equipped with a platform
  • The turntable is driven by a servo motor and has a positioning accuracy of 0.02-0.03mm
  • The main motor of 85 tons or more (including 85 tons) is equipped with servo

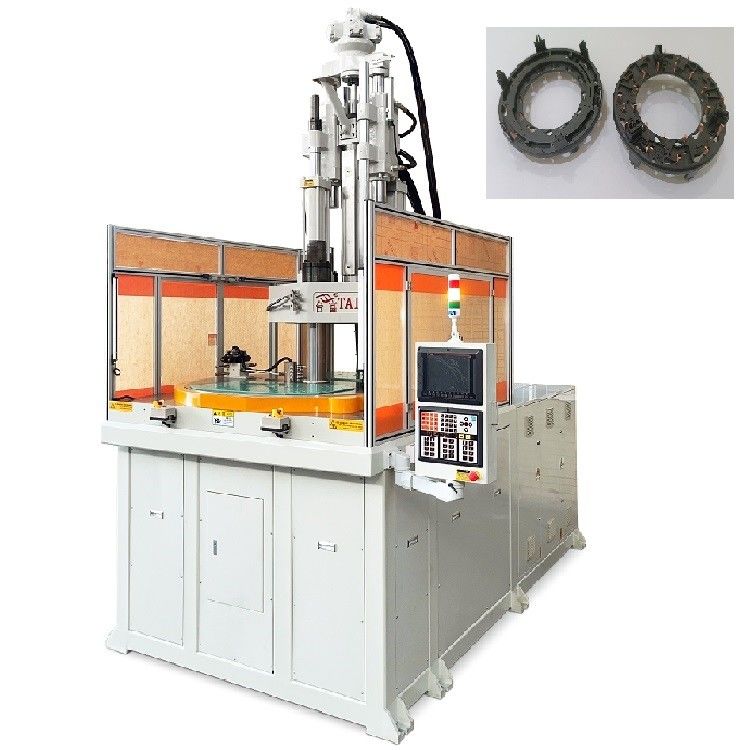

3. Machine Pictures:

Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders 0

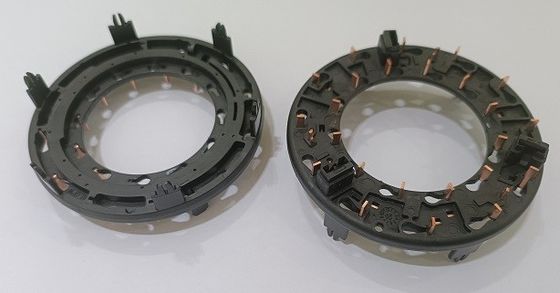

4. Applications:


Vertical Rotary Table Injection Molding Machine Used For Car Headlight Bulb Holders 1


5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


6. FAQ:


Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.


Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



Q: What are your payment terms?
T/T 30% deposite,70%before departure.



If you are interested in our machines, please contact me without hesitation!
