120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine

120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine
120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine
120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine 120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine 120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine

Large Image :  120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV4-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 220 set per month
Contact Now

120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine

Description
Product Name: 120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine Model: TFV4-120

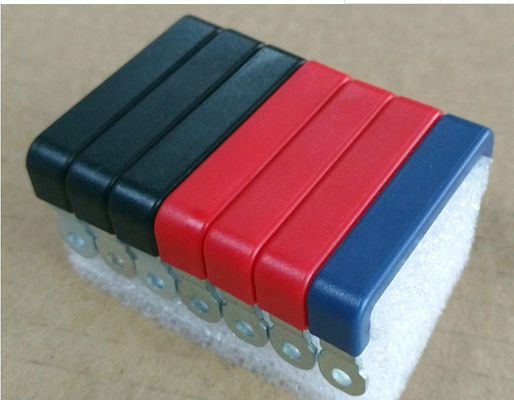

Usage: Plastic Injection Products Application: Hardware Handles
Clamping Force: 120 Tons Advantage: High Efficiency
Warranty: 1 Year After-sales Service Provided: Provided
Highlight:

120 ton injection moulding machine

,

Hardware Handles Making Machine

,

plastic vertical molding machine

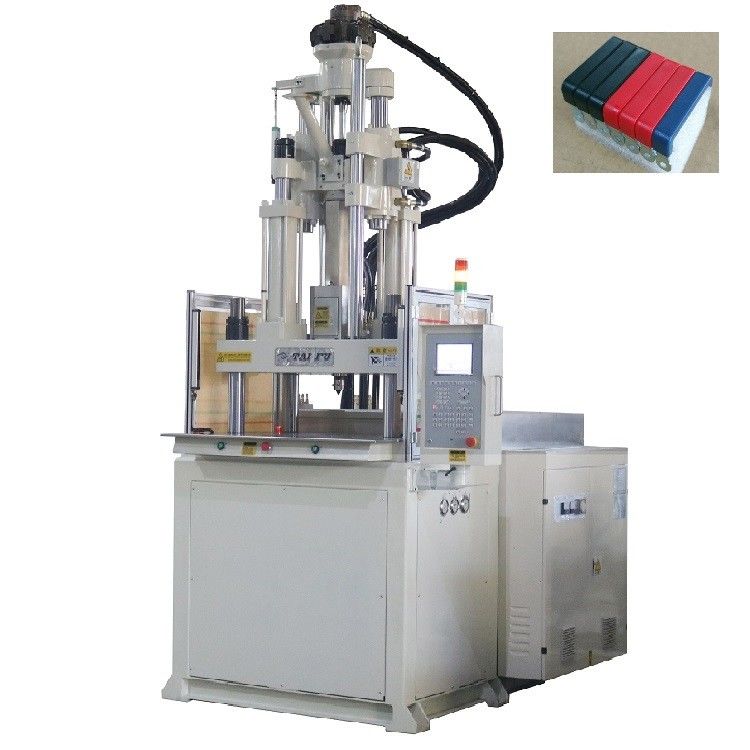

120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine



Vertical mold clamping, vertical injection,occupy less space, suitable for plastic products with inserts and multi-purpose injection molding processes.Strong applicability, widely used in electronic 3C, medical supplies, stationery supplies, automotive parts and other injection products.



The 120 ton capacity refers to the clamping force exerted by the machine to hold the mold together during the injection process. This clamping force ensures that the mold remains closed and properly sealed while the molten material is injected.



Machine Technical Parameters:



ITEMS UNIT TFV4-120
INJECTION UNIT
Screw stroke mm 160
Screw Diameter mm 36 40 45
Theoretical Injection Volume cm3 163 201 254
Injection Weight(PS) g 151 187 237
oz 5.34 6.60 8.35
Max.Injection Pressure Mpa 222 180 142
kgf/cm2 2269 1838 1452
Injection Rate cm3/s 128 158 200
Max Injection Speed mm/s 126
Screw Speed Rotation r.p.m 10~280
Positioning ring diameter mm 120
Nozzle Out From Platens mm ≥45
CLAMPING UNIT
Clamping Force KN(ton) 1176(120)
Clamping Stroke mm 280
Min.Mold Thickness mm 280(380)
Max.Opening mm 560(660)
(L*W)Distance Between Tie Bars mm 610*380
(L*W)Max.Mould Size mm 590*590
(L*W)尺寸Platen Size mm 860*620
QTY of Ejector pcs 1
Ejector Distance mm 95
Ejector Force KN(ton) 45(4.6)
Other
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 340
Electric Power KW 18.7
Heater Power KW 10.7
Machine Dimensions L*W m 2.1*1.7
　 m Min:3.2(Max:3.9)
Cooling water capacity L/min 50
Height of Workbench+(Excluding shock-absorbing feet) mm 1240+(70)
Machine Weight ton 5.5






Sepcifications:



120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine 0


Applications:



120Ton Hardware Handles Making Machine Vertical Plastic Injection Molding Machine 1


Why choose us?


1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


FAQ:



Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery.


Q2: Can you provide after-sales service?
We can provide after-sales services.


Q3: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.


Q4: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.


If you are interested in our machines, please do not hesitate to CONTACT US!
