Product Details:
|
| Product Name: | 25Ton Small Vertical Plastic Injection Molding Machine For Earphone Cables | Application: | Earphone Cables |
|---|---|---|---|
| Key Selling Points: | Cheap Price | Advantage: | Easy To Operate |
| Warranty: | 12 Month | Color: | Blue |
| Max Clamping Force: | 15 Tons | After-sales Services Provided: | Provided |
| High Light: | 25Ton Injection Molding Machine,Injection Molding Machine For Earphone Cables,vertical plastic injection machine |
||
25Ton Small Vertical Plastic Injection Molding Machine For Earphone Cables
It is available to customize machines to meet your...
TAIFU 25-ton small vertical plastic injection molding machine is a specialized machine used for manufacturing Earphone Cables. It is designed to efficiently and accurately inject molten plastic into a mold to create Earphone Cables components. This type of machine is compact and space-saving, making it suitable for small-scale production.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| UNIT | TFV2-15 | TFV4-20 | TFV4-25 | |||||||
| Injection Unit | Screw Diameter | mm | 22 | 26 | 22 | 28 | 26 | 30 | ||
| Injection Weight(PS) | g | 37 | 51 | 37 | 60 | 63 | 84 | |||
| oz | 1.3 | 1.8 | 1.3 | 2.1 | 2.0 | 2.7 | ||||
| Injection Pressure | kgf/cm3 | 1625 | 1164 | 1625 | 1004 | 1677 | 1260 | |||
| Injection Rate | cm3/s | 28 | 39 | 28 | 45 | 42 | 57 | |||
| Screw Speed Rotation | r.p.m | 0-150 | 0-150 | 0-150 | ||||||
| Screw Stroke | mm | 105 | 105 | 120 | ||||||
| Nozzle Stroke | mm | 120 | 150 | |||||||
| Nozzle Contact Force | tf | 2.4 | 2.4 | |||||||
| Clamping Unit | Clamping Force | tf | 15 | 20 | 25 | |||||
| Clamping Stroke | mm | 200 | 200 | 200 | ||||||
| Min.Mold Thickness | mm | 40 | 40 | 70 | ||||||
| Max.Opening | mm | 240 | 240 | 270 | ||||||
| (H*V)Platen Size | mm | 460*330 | 540*380 | |||||||
| Column Inner Dimensions | mm | 280 | 310*160 | 370*200 | ||||||
| Ejector Distance | mm | 30 | 28 | 28 | ||||||
| Ejector Force | tf | 0.7 | 0.7 | 0.7 | ||||||
| Others | Oil Tank Capacity | L | 90 | 90 | 120 | |||||
| Electric Power | KW | 2.2 | 2.2 | 3.75 | ||||||
| Heater Power | KW | 2 | 2 | 2.3 | ||||||
| Machine Size | L*W*H | m | 1.4*1.1*2.25 | 1.4*1.1*2.25 | 1.45*1.1*2.5 | |||||
| Machine Weight | ton | 0.8 | 0.8 | 1.1 | ||||||
2. Features:

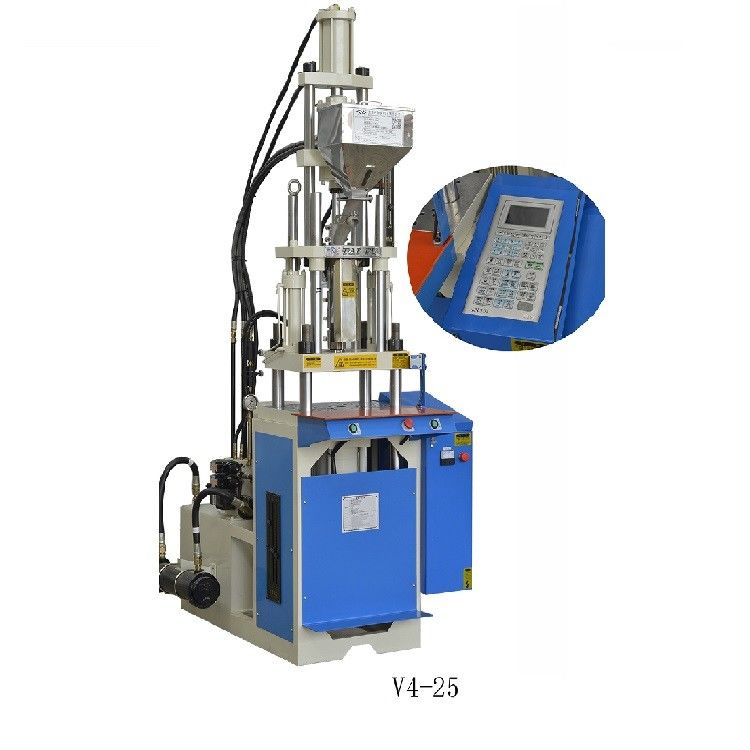

3. Machine Pictures:

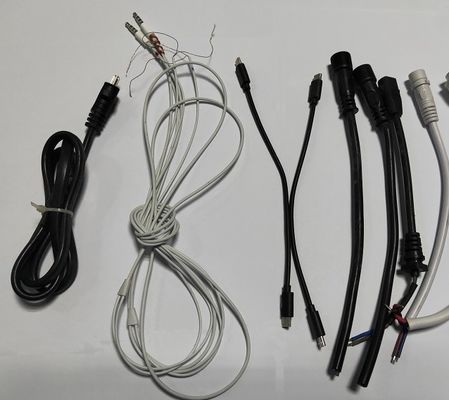

4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
If you are interested in our machines, please do not hesitate to CONTACT US!
