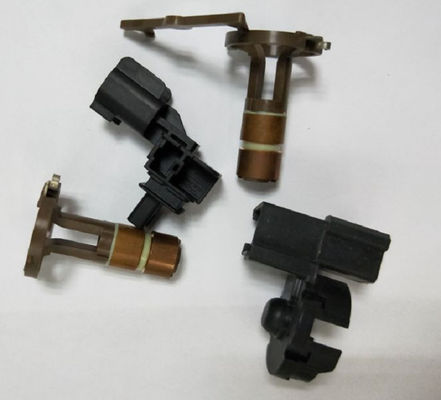

| Applicable Industries: | Manufacturing Plant | Usage: | Auto Parts |
| Warranty: | 12 Months | After-sales Service Provided: | After-sales Service Provided |
| Motor: | Servo Energy Saving | Style: | New |
| High Light: | 120Ton Single Slide Injection Molding Machine,Injection Molding Machine Security Door,Single Slide vertical injection moulding process |
||

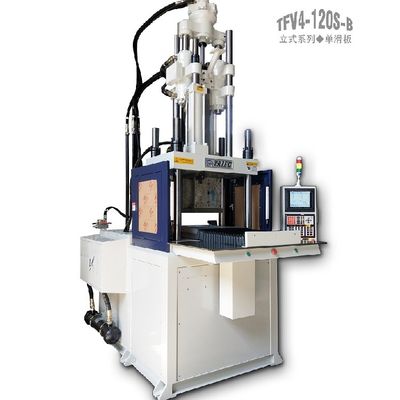

120Ton Vertical Single Slide Injection Molding Machine With Blue Sheet Metal Security Door
Our company is specialized in vertical injection molding machines with 17 years of manufacturing experience. The single slide vertical injection molding machine is one of our main products.
The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams. Vertical mold clamping, vertical injection, single sliding mold structure. After the injection molding is completed, the product slides out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| UNIT | TFV4-120S | TFV4-160S | TFV4-200S | ||||||||
| INJECTION UNIT | |||||||||||
| Screw stroke | mm | 160 | 200 | 200 | |||||||
| Screw Diameter | mm | 36 | 40 | 45 | 45 | 50 | 55 | 55 | 60 | 65 | |
| Theoretical Injection Volume | cm3 | 163 | 201 | 254 | 318 | 393 | 475 | 475 | 565 | 664 | |
| Injection Weight(PS) | g | 151 | 187 | 237 | 296 | 365 | 442 | 442 | 526 | 617 | |
| oz | 5.34 | 6.60 | 8.35 | 10.43 | 12.88 | 15.59 | 15.59 | 18.55 | 21.77 | ||
| Max.Injection Pressure | Mpa | 222 | 180 | 142 | 218 | 177 | 146 | 170 | 143 | 122 | |
| kgf/cm2 | 2269 | 1838 | 1452 | 2226 | 1803 | 1490 | 1738 | 1460 | 1244 | ||
| Injection Rate | cm3/s | 128 | 158 | 200 | 167 | 206 | 249 | 314 | 373 | 438 | |
| Max Injection Speed | mm/s | 126 | 105 | 132 | |||||||
| Screw Speed Rotation | r.p.m | 10~280 | 10~280 | 10~240 | |||||||
| Positioning ring diameter | mm | 120 | 120 | 150 | |||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | |||||||
| CLAMPING UNIT | |||||||||||
| Clamping Force | KN(ton) | 1176(120) | 1568(160) | 1960(200) | |||||||
| Clamping Stroke | mm | 280 | 300 | 350 | |||||||
| Min.Mold Thickness | mm | 280(380) | 300(400) | 350(450) | |||||||
| Max.Opening | mm | 560(660) | 600(700) | 700(800) | |||||||
| (L*W)Distance Between Tie Bars | mm | 610*380 | 690*410 | 900*450 | |||||||
| (L*W)Max.Mould Size | mm | 580*540 | 710*630 | 760*630 | |||||||
| (L*W)Skate size | mm | 600*560 | 730*650 | 780*650 | |||||||
| QTY of Ejector | pcs | 3 | 5 | 5 | |||||||
| Top bar spacing | mm | 80 | 100 | 125 | |||||||
| Ejector Distance | mm | 100 | 110 | 150 | |||||||
| Ejector Force | KN(ton) | 45(4.6) | 45(4.6) | 45(4.6) | |||||||
| OTHERS | |||||||||||
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) | |||||||
| Oil Tank Capacity | L | 340 | 450 | 540 | |||||||
| Electric Power | KW | 18.7 | 22 | 31 | |||||||
| Heater Power | KW | 10.7 | 13.7 | 13.7 | |||||||
| Machine Dimensions | L*W | m | 2.4*1.8 | 2.8*1.8 | 3.3*2.1 | ||||||
| H(Excluding shock-absorbing feet) | m | Min:3.3(Max:4.1) | Min:3.4(Max:4.2) | Min:4.35(Max:5.35) | |||||||
| Cooling water capacity | L/min | 50 | 50 | 60 | |||||||
| Height of Workbench+(Excluding shock-absorbing feet) | mm | 1340+(70) | 1480+(80) | 1630+(80) | |||||||
| Machine Weight | ton | 6.0 | 8.5 | 11.5 | |||||||
