25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver

25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver
25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver
25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver

Large Image :  25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV4-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 220 set per month
Contact Now

25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver

Description
Key Selling Points: Cheap Price Warranty: 1 Year
Application: Small Screwdriver Product Name: 25 Ton Mini Vertical Plastic Moulding Machine
Advantage: High Efficiency Max Volume: 78 Grams
Color: Blue Max Clamping Force: 25 Tons
Highlight:

Injection Moulding Machine 20 Ton

,

Plastic Injection Moulding Machines

,

vertical plastic injection

20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable



It is available to customize machines to meet your...



TAIFU 25-ton small vertical plastic injection molding machine is a specialized machine used for manufacturing USB cables. It is designed to efficiently and accurately inject molten plastic into a mold to create USB cable components. This type of machine is compact and space-saving, making it suitable for small-scale production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:





  UNIT TFV2-15 TFV4-20 TFV4-25
Injection Unit Screw Diameter mm 22 26 22 28 26 30
Injection Weight(PS) g 37 51 37 60 63 84
oz 1.3 1.8 1.3 2.1 2.0 2.7
Injection Pressure kgf/cm3 1625 1164 1625 1004 1677 1260
Injection Rate cm3/s 28 39 28 45 42 57
Screw Speed Rotation r.p.m 0-150 0-150 0-150
Screw Stroke mm 105 105 120
Nozzle Stroke mm - 120 150
Nozzle Contact Force tf - 2.4 2.4
Clamping Unit Clamping Force tf 15 20 25
Clamping Stroke mm 200 200 200
Min.Mold Thickness mm 40 40 70
Max.Opening mm 240 240 270
(H*V)Platen Size mm - 460*330 540*380
Column Inner Dimensions mm 280 310*160 370*200
Ejector Distance mm 30 28 28
Ejector Force tf 0.7 0.7 0.7
Others Oil Tank Capacity L 90 90 120
Electric Power KW 2.2 2.2 3.75
Heater Power KW 2 2 2.3
Machine Size L*W*H m 1.4*1.1*2.25 1.4*1.1*2.25 1.45*1.1*2.5
Machine Weight ton 0.8 0.8 1.1



2. Features:



  • Vertical mold-locking/vertical injection, suitable for general electrical plugs, electronic parts and other small insert molding.
  • The lower mold is fixed/the upper mold is movable, which has a good positioning for the formed inserts in the die. The finished product has hydraulic  injection device, which is very convenient and easy to take out.
  • Fast clamping/low pressure slow mold-closing, automatic emergency mold-opening when the clamping is abnormal, this special safety design can protect the mould.

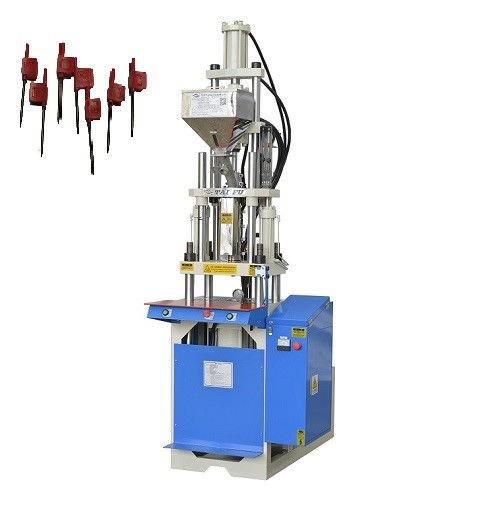

3. Machine Pictures:



25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 0

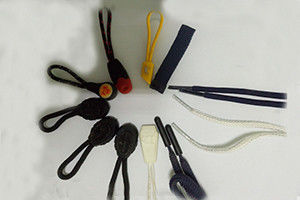

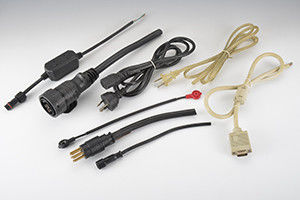

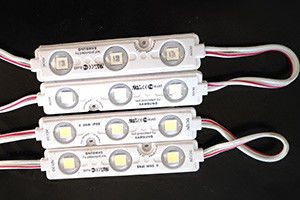

4. Applications:



25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 1

25 Ton Mini Vertical Plastic Moulding Machine For Small Screwdriver 2

5. Why choose us?


1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.



6. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What is the smallest injection mold machine?
A: Babyplast 10/12 is one of the smallest, fully hydraulic, injection moulding machines.



If you are interested in our machines, please do not hesitate to CONTACT US!
