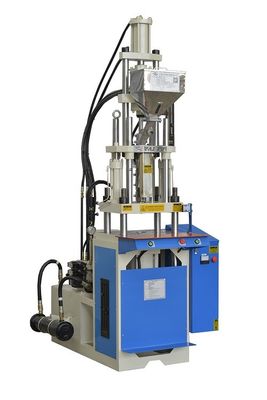

20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable

20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable
20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable
20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable

Large Image :  20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV4-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 220 set per month
Contact Now

20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable

Description
Key Selling Points: Cheap Price Warranty: 1 Year
Application: USB Cable Product Name: 20 Ton Small Vertical Plastic Injection Molding Machine
Advantage: High Efficiency Max Volume: 78 Grams
Color: Blue Max Clamping Force: 25 Tons
Highlight:

20 Ton Injection Molding Machine

,

vertical injection machine

,

plastic vertical injection moulding machine

20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable



It is available to customize machines to meet your...



TAIFU 20-ton small vertical plastic injection molding machine is a specialized machine used for manufacturing USB cables. It is designed to efficiently and accurately inject molten plastic into a mold to create USB cable components. This type of machine is compact and space-saving, making it suitable for small-scale production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:





  UNIT TFV2-15 TFV4-20 TFV4-25
Injection Unit Screw Diameter mm 22 26 22 28 26 30
Injection Weight(PS) g 37 51 37 60 63 84
oz 1.3 1.8 1.3 2.1 2.0 2.7
Injection Pressure kgf/cm3 1625 1164 1625 1004 1677 1260
Injection Rate cm3/s 28 39 28 45 42 57
Screw Speed Rotation r.p.m 0-150 0-150 0-150
Screw Stroke mm 105 105 120
Nozzle Stroke mm   120 150
Nozzle Contact Force tf   2.4 2.4
Clamping Unit Clamping Force tf 15 20 25
Clamping Stroke mm 200 200 200
Min.Mold Thickness mm 40 40 70
Max.Opening mm 240 240 270
(H*V)Platen Size mm   460*330 540*380
Column Inner Dimensions mm 280 310*160 370*200
Ejector Distance mm 30 28 28
Ejector Force tf 0.7 0.7 0.7
Others Oil Tank Capacity L 90 90 120
Electric Power KW 2.2 2.2 3.75
Heater Power KW 2 2 2.3
Machine Size L*W*H m 1.4*1.1*2.25 1.4*1.1*2.25 1.45*1.1*2.5
Machine Weight ton 0.8 0.8 1.1



2. Features:



  • Vertical mold-locking/vertical injection, suitable for general electrical plugs, electronic parts and other small insert molding.
  • Two segment (three segment) temperature control, injection speed / back pressure and other non-segment adjustment, more suitable for precision plastic parts forming.
  • Fast clamping/low pressure slow mold-closing, automatic emergency mold-opening when the clamping is abnormal, this special safety design can protect the mould.

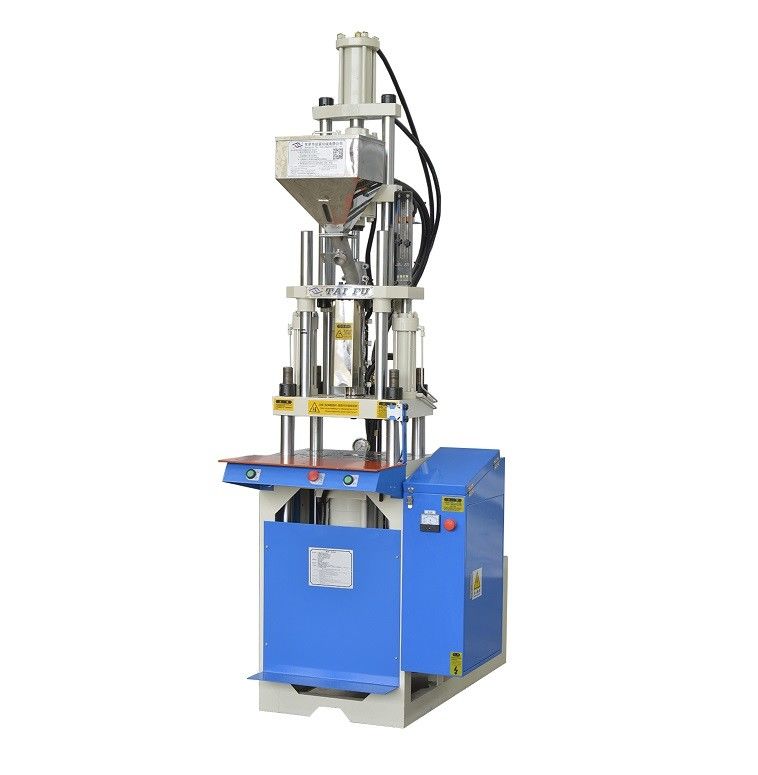

3. Machine Pictures:



20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 0

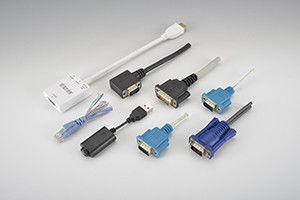

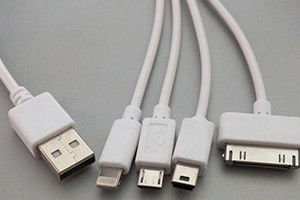

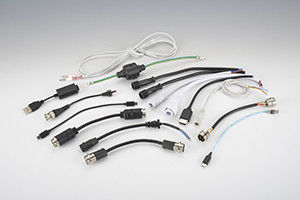

4. Applications:


20 Ton Small Vertical Plastic Injection Molding Machine For USB Cable 1

5. Why choose us?


1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.



6. FAQ:



Q: What is the smallest injection mold machine?
A: Babyplast 10/12 is one of the smallest, fully hydraulic, injection moulding machines.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
