High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine

High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine
High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine

Large Image :  High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV3-55R2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 220 set per month
Contact Now

High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine

Description
Key Selling Points: High Effiency Warranty: 1 Year
Oil Tank Capacity: 230L Color: White & Yellow
Application: Automobile Industry Function: Making Plastic Product
After-sales Service Provided: Online Service Product Name: 55Ton Vertical Rotary Injection Molding Machine
Highlight:

Auto Parts Making Machine

,

55Ton Injection Moulding Machine

,

Vertical Rotary Injection Molding Machine

High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine


The locking force specifications of the TAIFU vertical rotary table injection molding machine range from 35 tons to 350 tons, with a minimum diameter of 810mm and a maximum diameter of 2300mm. The machine is equipped with a high-performance control system, providing strong guarantee for high-quality injection molding accuracy and stability. The vertical rotary injection molding machine, due to its unique rotatable disc design, can be used in conjunction with extended automation equipment to achieve high-quality and efficient automated production for products with complex shapes and special processes. It has been widely used in the automotive parts and new energy industries.

This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts. The 55 ton capacity refers to the clamping force exerted by the machine to hold the mold together during the injection process. This clamping force ensures that the mold remains closed and properly sealed while the molten material is injected.



1.Specification:


Items Unit TFV3-35R2 TFV3-55R2 TFV3-85R2
Injection Unit
Screw Diameter mm 22 26 28 28 32 36 32 36 40
Theoretical Injection Volume cm3/ 53 74 86 86 113 143 113 143 176
Injection Weight g 49 69 80 80 105 133 105 133 164
Max. Injection Pressure Mpa 248 178 153 213 163 129 228 180 146
Injection Rate cm3/s 44 62 72 63 84 107 100 126 156
Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Clamping Unit
Clamping Force KN 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Ejector Force KN 26.5(2.7) 26.5(2.7) 45(4.6)
Others
System Pressure Mpa 13.7(140)/17.2(175) 13.7(140) 13.7(140)/17.2(175)
Oil Tank Capacity L 200 230 300
Motor Power KW 7.5/11 11 15+2.2/18+2.2
Heater Power KW 3.6 5.5 7.0

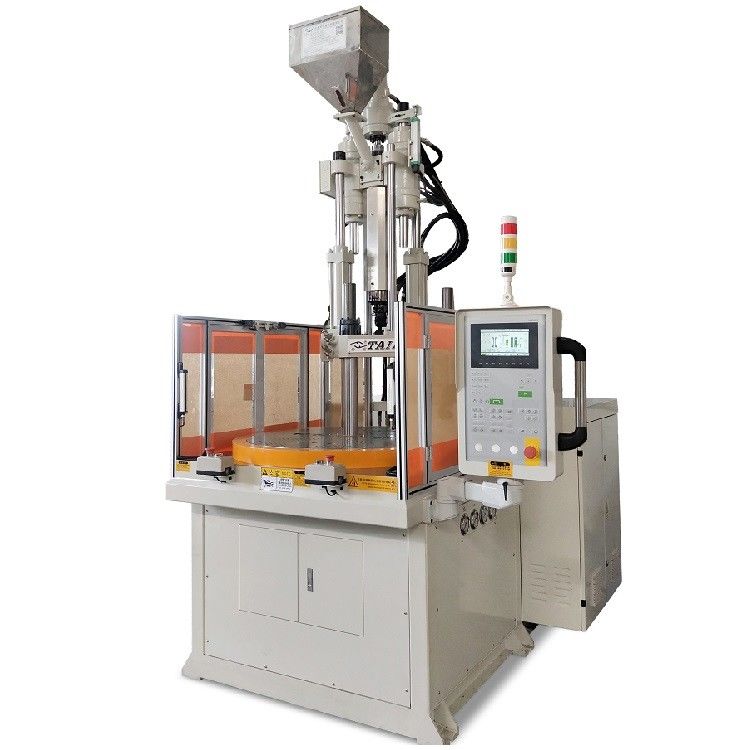

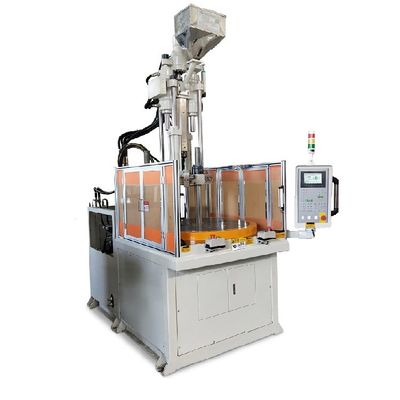

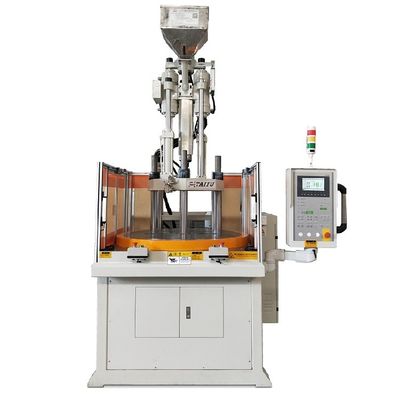

2.Machine Pictures:
 High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine 0High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine 1High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine 2

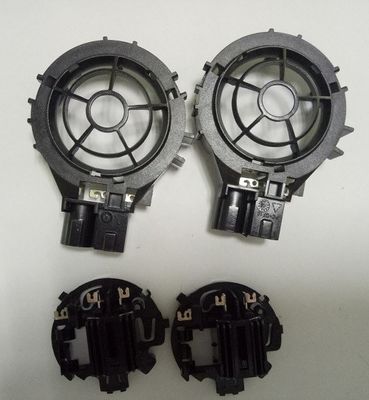

3.Applications:
High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine 3


High Efficiency Auto Parts Making Machine 55Ton Vertical Rotary Injection Molding Machine 4


4.Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


5.FAQ
Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q2: What are your payment terms?
T/T 30% deposite,70%before departure.


Q3: Can you provide OEM service?
We can provide OEM, ODM, services. It will depend on your requirements; your logo will be customized on our products.


Q4: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.


Q5: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.


If you are interested in it, please contact me without hesitation!
